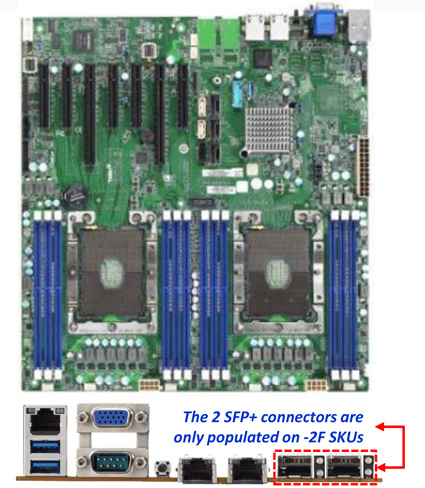

Motherboard Intel® S7103
S7103Xeon SP / 12 DIMMs / 7 PCIe slots / Opt. 10GbE / Opt. SAS 12G IOC
Model Name : Intel® S7103
Chipset : Intel® C621 (LBG-1G) or C622 (LBG-2) PCH
Memory
- • (6+6) DDR4 DIMM slots (6 memory channels per CPU)
- • Supporting up to 768GB RDIMM/LRDIMM DDR4-2666 memory

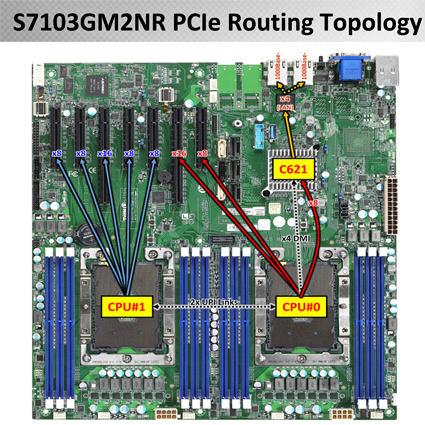

PCI Expansion Slots
- • (2) PCI-E G3 x16 slots (#3, #6)
- • (5) PCI-E G3 x8 slots (#1, #2, #4, #5, #7)
Network
- • (2) 1000Base-T ports (Intel i350-AM2) (N/A on (W)GM2NR-2F-L2 SKUs)
- • (2) 10GBase SFP+ ports (Intel x722 embedded in C622 PCH)(-2F SKUs)
- • (1) 1000Base-T dedicated IPMI port (RealtekRTL8211E-VB-CG)
Storage
- (14) SATA 6G w/ Intel RSTe 5.0 RAID support
- (Opt.) (8) SAS 12G w/ Broadcom SAS3008 RAID 0/1/10 support
